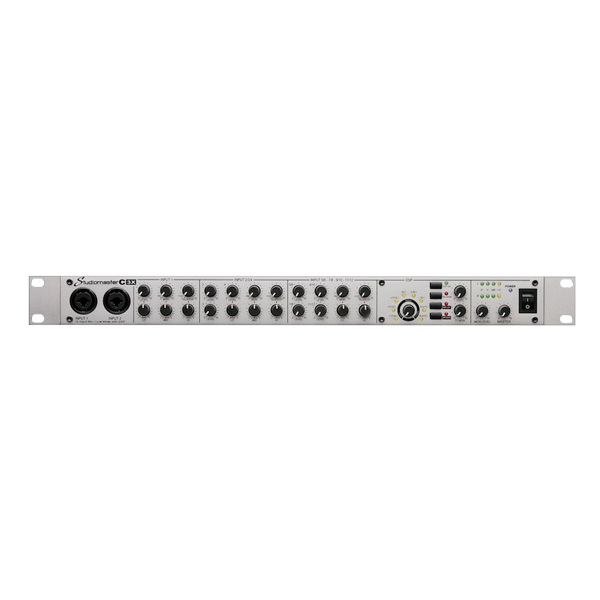

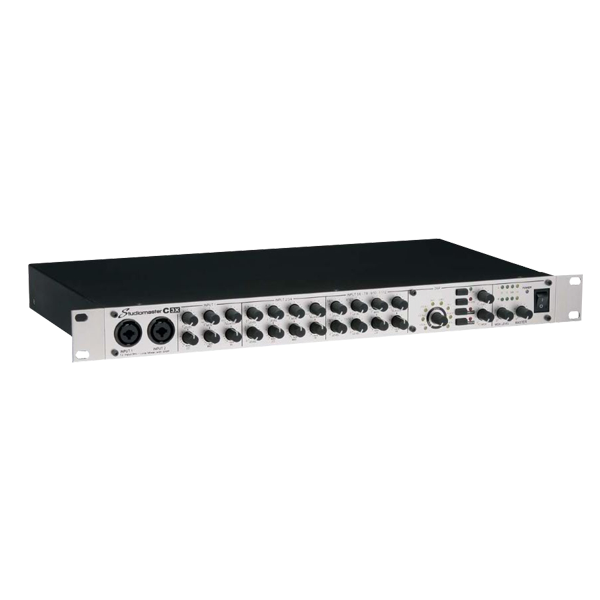

C3X 12 Input Compact Rack Mixer
The C3X mixer offers you a total of 12 inputs in a compact 1u 19″ rack mountable package. Including the Studiomaster custom DSP effects processor. Four balanced combination XLR and Jack inputs allow you to connect your microphones or line level equipment. For added flexibility two inputs are on the front panel and two on the rear. All mic pre amps feature our studio grade design, making them ideal even if you want to use condensotr microphones. Comprehensive DSP with reverbs and adjustable delay with regen facility. Balanced XLR outputs and led metering finish off a superior compact design.
For any detail and information please CONTACT US
Description
- 12 inputs
- 4 microphone inputs with 3 band EQ
- 4 stereo channels with 2 band EQ
- 2 aux sends
- Balanced input and output connectors
- Custom high quality DSP effects
Inputs: 12
Mic Inputs: 4
Stereo Inputs: 4
Frequency Responce: 22Hz – 40kHz (+/-0.5dB)
Distortion: THD @ 1kHz 0.008%
Residual Noise: -93dBu
Dynamic Range: >105dBu
Metering: Peak reading 4 segment 2 colour LED bargraphs
Mic EQ: Hi, Mid, Lo
Stereo EQ: Hi, Lo
DSP: 8x Reverb, Delay 10ms to 720ms, Regen 0%-90%
Maximum Output Levels: XLR+23dBu, RCA+17dBu, Aux&Mon+23dBu
Power Requirements: 115-240V ~ 50/60Hz 70-140mA max
Dimension W*H*D: 482 x 44 x 265 (mm)
Weight Net/Shipping: 3.7kg / 4.7kg
- Product Features
-
- 12 inputs
- 4 microphone inputs with 3 band EQ
- 4 stereo channels with 2 band EQ
- 2 aux sends
- Balanced input and output connectors
- Custom high quality DSP effects
- Specification
-
Inputs: 12
Mic Inputs: 4
Stereo Inputs: 4
Frequency Responce: 22Hz – 40kHz (+/-0.5dB)
Distortion: THD @ 1kHz 0.008%
Residual Noise: -93dBu
Dynamic Range: >105dBu
Metering: Peak reading 4 segment 2 colour LED bargraphs
Mic EQ: Hi, Mid, Lo
Stereo EQ: Hi, Lo
DSP: 8x Reverb, Delay 10ms to 720ms, Regen 0%-90%
Maximum Output Levels: XLR+23dBu, RCA+17dBu, Aux&Mon+23dBu
Power Requirements: 115-240V ~ 50/60Hz 70-140mA max
Dimension W*H*D: 482 x 44 x 265 (mm)
Weight Net/Shipping: 3.7kg / 4.7kg
