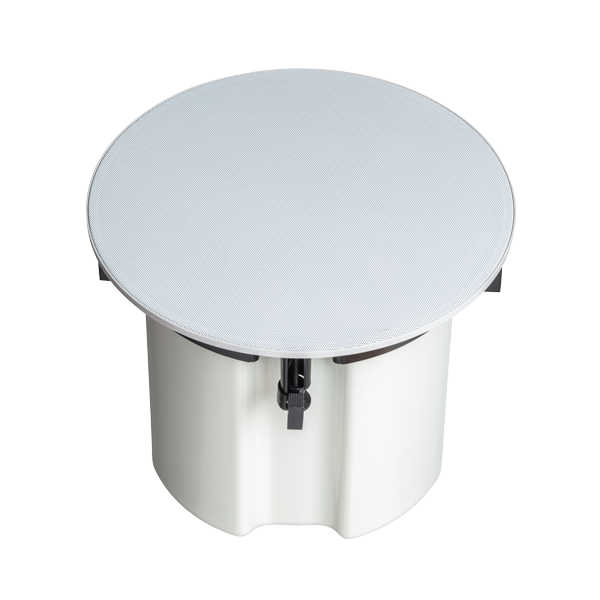

DL 10-165/T Plus Ceiling Speaker
The 10W powered speaker is equipped with a 165mm 2-way system with neodymium tweeter and a 100V transformer with 4 power adjustments. The powder coated metal similar in RAL 9010 guarantees long-term stability. Quick and easy mounting with spring clamps and short tension distance. The speaker is connected by a 2-pin push-clamp. Perfectly suitable for installations where high sound quality is needed. This speaker is suitable for a ceiling strength of about 2 – 45 mm. With regard to the variety of materials and manufacturers, we recommend to build in a sample of the speaker to match the requirements accurately.
Product Manual
For any detail and information please CONTACT US
Description
Product Features:
Description: DL 10-165/T plus
Power: 10/6/3/1,5 W
Frequency Range: 63 – 20.000 Hz
Frequency Response: 40 – 24.000 Hz
SPL 1W/1m, Peak: 94,0 dB
SPL Pmax/1m, Peak: 104,0 dB
Sensitivity 1W/1m: 89,2 dB
Dispersion (-10dB): 180° (h) / 180° (v)
Temperature Range: -20 / +80 °C
Dimensions: 220×123 mm
Weight (net): 1,55 kg
Colour: RAL 9010
Connector: 2-pin push clamp
Mounting: Quick fit mounting
Packing: Unit 8
Accessories: F 165 plus
Ceiling Cut-out: 197 mm
